SLOPE-OP™: Intelligent Slope Stability Analysis with an Interactive GUI and Parallel Computings

Adisorn Owatsiriwong

ALPS CONSULTANTS

A New Generation of Slope Stability Software

Slope stability analysis has traditionally required engineers to spend considerable time preparing geometry, defining slip surfaces, and repeatedly modifying models before obtaining meaningful results. As projects become more complex, conventional trial-and-error approaches become increasingly inefficient.

At ALPS Consultants, we developed SLOPE-OP™ (Slope Optimization Platform) to simplify this entire process while improving the reliability of slope stability analysis.

SLOPE-OP combines a fully interactive graphical interface with intelligent optimization algorithms, allowing engineers to create realistic slope models quickly and automatically search for the global critical slip surface. The search algorithm is implemented using OpenMP, which significantly improves performance.

Designed Around the Way Engineers Work

Rather than forcing users to edit lengthy input files or manually define complex geometries, SLOPE-OP is built around a modern graphical workflow.

Engineers can simply draw the slope directly on the screen using an intuitive CAD-like interface.

The program allows users to:

• Draw arbitrary ground profiles

• Create multiple soil layers interactively to allow for a complex soil profile

• Modify geometry simply by clicking and dragging

• Assign soil properties graphically

• Add or edit surcharge loads directly to the model

• Edit every object interactively without rebuilding the model

• Search for circular and non-circular slip surface (Janbu Simplified)

• Parallel computing solver using OMP for speeding up the search process




This interactive environment makes model preparation significantly faster while reducing the possibility of input errors.

Analysis Methods

Currently, two simple analysis methods are available

• Fellenius (ignore inter-slice forces)

• Bishop Simplified (Consider inter-slice normal, ignore inter-slice shear)

• Janbu Simplified (Non-circular slip analysis)




  From a computational perspective, Bishop hits a very attractive balance:

  • It uses the same slice geometry as Fellenius.

  • It only requires 5–10 iterations to converge.

  • It is almost as accurate as Spencer or Morgenstern–Price for circular slip surfaces.

  • It is far simpler to implement than the fully rigorous methods.

Support for Arbitrary Soil Stratification

Real projects rarely consist of simple horizontal soil layers.

SLOPE-OP supports completely arbitrary subsurface conditions, including:

• Complex irregular soil interfaces

• Multiple soil layers

• Arbitrary groundwater line

• Sloping strata

• Variable geometry

• Natural ground profiles

•


Each layer can be assigned its own:

• Unit weight (moist and saturated, kN/m3)

• Cohesion (kPa)

• Friction angle (deg)

This flexibility allows engineers to model realistic geological conditions without simplifying the problem.

Fully Interactive Modeling

Every object inside SLOPE-OP is editable directly from the graphical interface.

Need to modify a soil boundary?

Simply drag it.

Need to change a surcharge?

Double-click and edit the value.

Need to reshape the slope?

Move the control points interactively.

The entire model updates immediately, creating a smooth workflow similar to modern CAD software.

Instead of editing text input files, engineers work directly with the engineering model.

Intelligent Global Search for the Critical Slip Surface

The greatest challenge in slope stability analysis is often not calculating the factor of safety—but finding the actual critical failure mechanism.

Many traditional methods rely on:

• Manual trial-and-error

• Regular grid searches

• Limited search regions

These approaches may miss the true global minimum, especially for complicated slopes.

SLOPE-OP adopts a fundamentally different strategy.

Using intelligent optimization algorithms, the software automatically explores thousands of possible slip surfaces across the entire search domain.

Rather than depending on user intuition, SLOPE-OP systematically searches for the global critical slip surface that produces the minimum factor of safety.

This greatly reduces the chance of overlooking the governing failure mechanism while minimizing user effort.

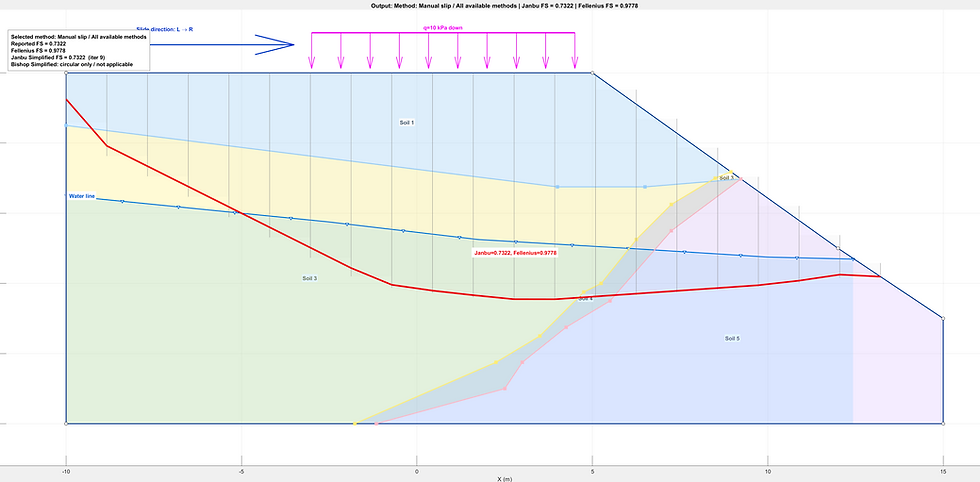

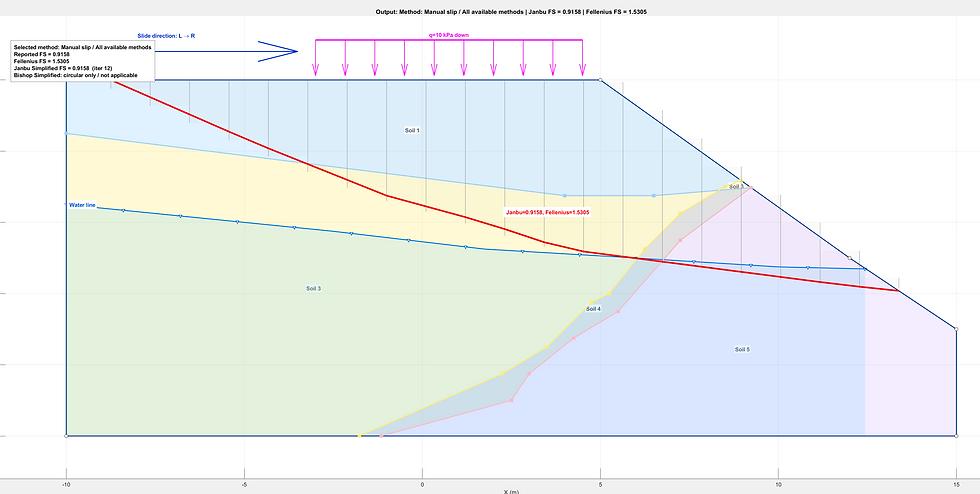

Manual Slip Draw and FS Calculation

The program lets the user define a slip line and computes FS using the Janbu method for non-circular slip analysis without any search. This feature is crucial to back analysis and validation.

Efficient Search Through Optimization

Optimization has transformed many engineering disciplines, and slope stability is no exception.

SLOPE-OP leverages modern optimization techniques to:

• Explore large search spaces efficiently

• Avoid being trapped in poor local solutions

• Automatically refine promising slip surfaces

• Reduce unnecessary computations

• Improve confidence in the reported critical factor of safety

The result is a faster and more robust analysis compared with traditional exhaustive search techniques.

Built for Practical Engineering

SLOPE-OP has been developed with practical engineering applications in mind.

Typical applications include:

• Highway slopes

• Railway embankments

• Earth dams

• Excavations

• Cut-and-fill slopes

• Retaining structures

• Open pit excavations

• Industrial developments

Whether evaluating existing slopes or designing new earth structures, engineers can rapidly investigate multiple design alternatives with minimal setup time.

Why SLOPE-OP?

Interactive GUI

Modern CAD-style graphical modeling with direct manipulation of every engineering object.

Arbitrary Soil Layers

Supports realistic geological conditions without simplifying soil profiles.

Fully User Interactive

Geometry, soil properties, and loading conditions can all be modified directly through the graphical interface.

Intelligent Optimization

Automatically performs a global search for the most critical slip surface instead of relying solely on manual trial-and-error.

Engineering Focused

Developed by practicing engineers to solve real-world geotechnical engineering problems efficiently.

Engineering Made Smarter

Engineering software should do more than perform calculations—it should help engineers make better decisions.

SLOPE-OP combines interactive modeling with intelligent optimization to create a powerful yet easy-to-use platform for slope stability analysis.

By allowing engineers to focus on engineering judgment rather than repetitive model preparation, SLOPE-OP represents the next step toward smarter and more reliable geotechnical design.

SLOPE-OP™Slope Stability Analysis Using Intelligent Optimization

Developed by ALPS Consultants

"Interactive Modeling. Intelligent Optimization. Better Engineering Decisions."
