PILE-OP™: A Foundation Design Tool Powered by Intelligent Optimization
- Adisorn O.
- Jun 3
- 5 min read
Updated: Aug 21
Adisorn Owatsiriwong
ALPS CONSULTANTS
Transforming Pile Foundation Design Through Engineering Intelligence
Modern construction projects demand more than conventional pile foundation design. Increasing structural complexity, tighter schedules, seismic requirements, and cost pressures require engineers to evaluate thousands of design possibilities efficiently while maintaining compliance with design standards.
To address these challenges, ALPS Consultants has developed PILE-OP™, an advanced pile foundation optimization platform that combines structural engineering expertise, finite element analysis, and Artificial Intelligence (AI) optimization technologies into a practical engineering solution.
PILE-OP is not simply a calculation program—it is an integrated engineering platform developed from real-world project experience and successfully applied to more than 50 commercial, industrial, residential, and infrastructure projects.
AI-Powered Optimization for Practical Engineering
Traditional pile foundation design often relies on manual trial-and-error iterations.
PILE-OP replaces this process with intelligent optimization algorithms that automatically evaluate numerous pile configurations and design alternatives to identify efficient and economical solutions while satisfying engineering constraints.
The system can optimize:
Number of piles
Pile arrangement and geometry
Pile cap dimensions
Load distribution
Pile reactions
Structural demand-to-capacity ratios
Foundation construction cost parameters
This approach allows engineers to achieve designs that are both safe and economical while significantly reducing design time.
Program Workflow
For Structural Analysis and Soil-structure Interaction
Import Data from ETABS (v9.7, v22+) --> Optimize Pilecap* --> Combo Check
|
V
SSI Analysis <-- Merge to ETABS Model <-- Validate <--Fix Failed Caps
For Pilecap Design
Import Data from ETABS (v9.7, v22+) --> Optimize Pilecap* --> Combo Check
|
V Export to DXF, Report <- - Transfer to Design <-- Validate<--Fix Failed Caps
Stage 2 global plan conflict check can be performed after this stage
Direct Integration with ETABS
One of the most powerful features of PILE-OP is its ability to work directly with structural analysis models.
PILE-OP supports:
ETABS Model Import
The system can extract:
Column locations
Support reactions
Load combinations
Structural geometry
Foundation demand information
Column dimensions at pilecap level i.e. [D,B,beta] and transform to local axes when for pile cap design
Support for ETABS 9.7 and v22 or later
directly from ETABS models.
ETABS Model Export
PILE-OP can automatically generate foundation models and export data back into ETABS-compatible formats, reducing repetitive modeling work and minimizing human error.
Compatibility includes:
ETABS 9 and later versions
Legacy and modern ETABS workflows
Large multi-building developments
High-rise and low-rise structures
This seamless integration creates a highly efficient workflow from structural analysis to foundation design.
Combo Check + Auto Fix behaves like an engineering assistant: it identifies the governing load combinations, increases only the necessary pile caps, and iterates until convergence or until the predefined layouts are exhausted.
UPDATE Foundation to the existing ETABS model and IFC Export
PILE-OP can incrementally update the ETABS e2k model while preserving all model definitions. The program modifies only the PILECAP and piles within the model, without affecting any other features. This is especially convenient during design development, where minor modifications are common. IFC file for the BIM viewer can be generated after a successful merge. This also includes the rebar details if available.
Designed for Low-Rise and High-Rise Buildings
PILE-OP has been successfully applied to projects ranging from small industrial structures to large multi-story developments.
Applications include:
Residential buildings
Commercial buildings
Warehouses
Factories
Hospitals
Educational facilities
Mixed-use developments
High-rise towers
The software can handle both conventional foundation systems and complex pile-supported structures where interaction between pile groups becomes critical.
Global Optimization to Solve Pile Spacing Conflicts
PILE-OP uses 2-stage optimization to avoid pile spacing conflicts. The piles in the pile cap are arranged to maintain the minimum pile spacing, i.e., 3dp, from the neighboring piles. A mix of pile sizes can be optimized using an intelligent algorithm.

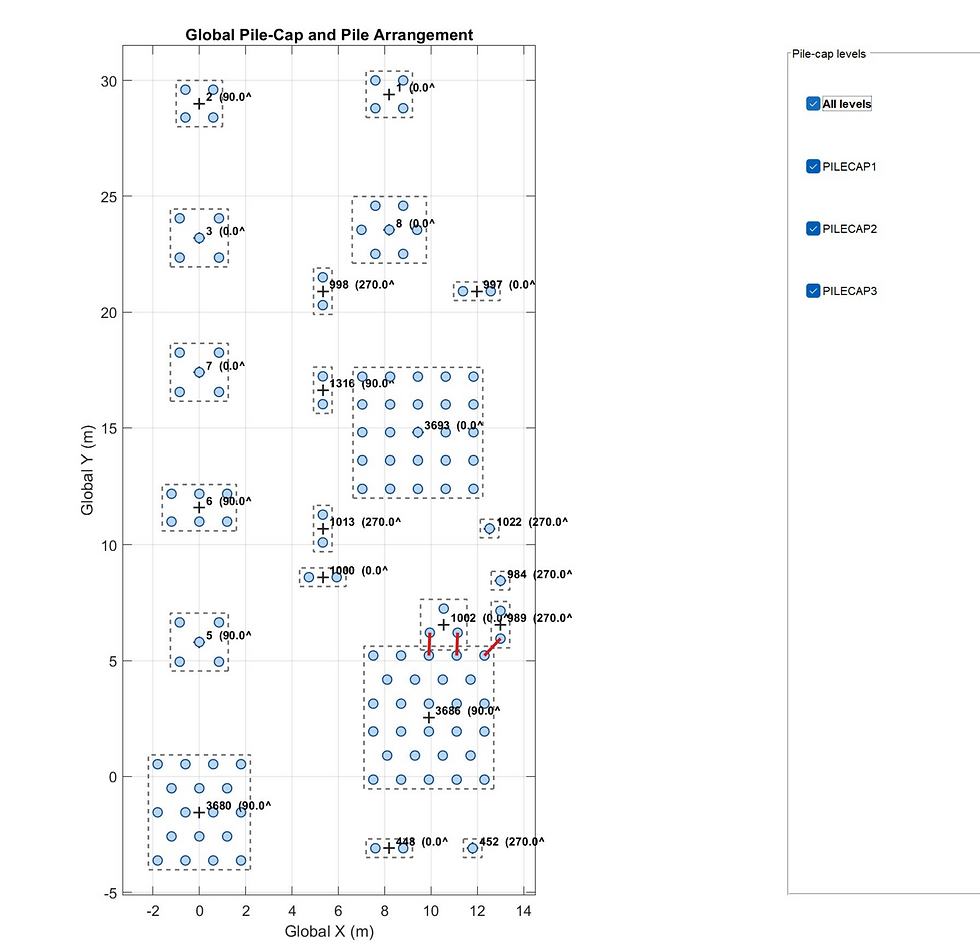

Example of a pile in conflict with other piles
Solution after optimization
Advanced Lateral Soil Spring Generation
Modern foundation engineering increasingly requires consideration of lateral behavior, particularly in seismic regions.
PILE-OP incorporates automated generation of:
Lateral soil springs
Pile-soil interaction models
Nonlinear support representation
Seismic foundation analysis inputs
The generated soil springs can be incorporated into structural analysis workflows, enabling engineers to evaluate:
Lateral pile response
Foundation flexibility
Seismic performance
Wind-induced loading effects
Soil-structure interaction behavior
This capability significantly improves realism compared with simplified fixed-base assumptions.
Based on Industry-Recognized CRSI Pile Cap Standards
Pile cap design within PILE-OP follows recognized engineering principles and detailing practices consistent with CRSI recommendations and reinforced concrete design standards.
The platform performs automated checks in accordance with ACI319-19 requirements for:
Flexural design
One-way shear
Punching shear
Pile reactions
Load transfer mechanisms
Reinforcement requirements
The result is a practical and constructible design suitable for professional engineering applications.
Local Coordinate Design
The pile cap is designed based on its local coordinates. This natural approach allows us to design any configuration of the pile cap before and after rotation using the same design algorithm.
Export to DXF
For a complete workflow, PILE-OP automatically exports all pile caps to a single DXF file. The user can choose which pile cap to export from the list. This significantly saves time and reduces drafting work. This feature makes PILE-OP the true automatic production tool for engineering design.
Support for Single and Multiple Pile Cap Systems
Real projects rarely consist of a single foundation type.
PILE-OP supports:
Single Pile Caps
Isolated column foundations
Symmetrical pile groups
Eccentric loading conditions
Multiple Pile Caps
Entire building foundation systems
Interconnected foundation layouts
Large industrial structures
Multi-zone developments
The software allows engineers to evaluate dozens or even hundreds of pile caps within a single project environment.
Spread Foundation
We decided to extend our PILE-OP to support the design of projects that do not require pile foundations. By sharing many core functions from the pile foundation module, the program can automate the spread footing design workflow efficiently.
Flat Slab and Transfer Structure Applications
PILE-OP is particularly effective for structures that generate large concentrated reactions, including:
Flat slab buildings
Post-tensioned slab structures
Transfer girders
Transfer slabs
Podium structures
Industrial equipment foundations
The system efficiently processes support reactions from these structures and converts them into optimized pile foundation solutions.
Support for Multiple Pile Types
Different projects require different foundation systems.
PILE-OP supports multiple pile sections including:
Prestressed concrete piles
Reinforced concrete piles
Bored piles
Drilled shafts
Steel pipe piles
Custom pile sections
This flexibility allows engineers to adapt the optimization process to local construction practices and project requirements.
Proven Through Real Projects
PILE-OP is not a research prototype.
The platform has already been utilized on more than 50 engineering projects, providing valuable feedback that has continuously improved its capabilities.
The development philosophy has always been practical:
Built by engineers. Tested on projects. Refined through real-world application.
This practical foundation distinguishes PILE-OP from many academic or conceptual optimization tools.
A Proprietary Technology of ALPS Consultants
PILE-OP is a proprietary engineering technology developed exclusively by ALPS Consultants.
The platform represents years of investment in:
Structural engineering
Foundation engineering
Finite element analysis
Computational mechanics
Optimization algorithms
Engineering software development
It forms part of ALPS Consultants’ broader vision of integrating Artificial Intelligence and advanced computational methods into professional engineering practice.
The Future of Foundation Design
As engineering projects become increasingly complex, the ability to evaluate thousands of design alternatives rapidly and intelligently will become a necessity rather than a luxury.
PILE-OP delivers that capability today.
By combining AI optimization, ETABS integration, pile-soil interaction modeling, and practical engineering design procedures, PILE-OP provides a modern foundation design workflow that is faster, smarter, and more economical.
PILE-OP™ — Intelligent Pile Foundation Optimization by ALPS Consultants.
